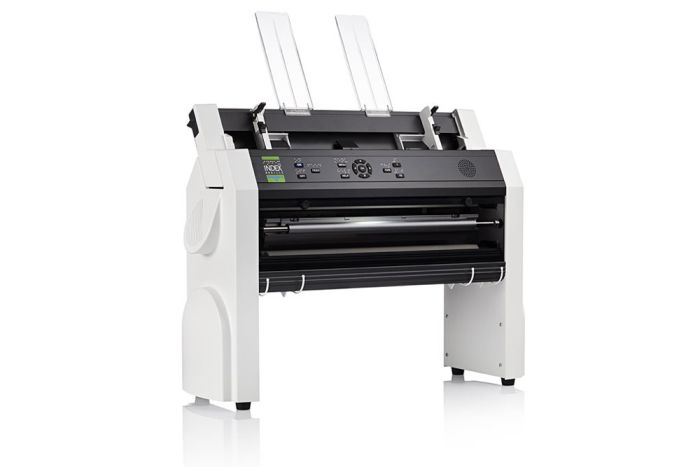

Everest-D V5 is the most compelling cut-sheet fed braille embosser with the ability to print on a flexible range of user defined Braille and paper formats. New to V5 is the possibilities with new modern features like Wi-fi connection, embossing from USB memory and braille printing from mobile devices.
Though the physical appearance has not changed, the Everest-D V5 has been updated to include all the latests Braille techniques and compatibility with mainstream technology.
Braille on cut-sheet paper is the future. The technological solution of the Braille optimized sheet feeder used in the Index Braille Everest-D V5, is the secret sensation.
Emboss Braille horizontally or vertically (sideways) using the Everest-D V5 Braille embosser.
Select and save region specific layouts or operate using 1-9 layout options including user-defined layouts.
Light is an important design component in all V5 embossers and a hallmark for its technology level. It both guides the user interface and decorates the embosser.
The control panel is a local user interface which allows the user to interact with the braille embosser and provides complete embosser control.
Index V5 printers supports the use of the BrailleApp. The BrailleApp is available when the V5 printer is connected to your LAN, simply type the IP addess of your printer in the serach window of the browser. The BrailleApp is now presented on PC's, mobile pones, pads and adapted to the screen size.
The V5 solenoids (hammers) offer even better braille dot quality, a longer life cycle, higher embossing speed and lower power consumption.
idB is a direct braille printing application built in the V5 braille embosser. It is available free of charge and compatible with Windows, Mac and Linux computers.
Full of truly useful features and endless braille embossing opportunities, Index V5 braille embossers still maintain the most affordable braille printer price comparatively.
In V5 embossers the speech feedback is generated by Acapela synthetic speech. This enables easy feedback when controlling the embosser user interface.
High quality Braille on both sides of the paper, known as interpoint or double-sided braille, is an Index Braille trademark.
Get Index Braille embosser support from anywhere in the world by simply connecting to our remote support function embedded in the V5 embosser.
Connect a USB memory stick directly to any Index V5 braille embosser via USB host port to directly print braille documents or back up and restore embosser settings.
|Embossing speed cps||100 cps|
|Vertical printing (newspaper)||Yes|
|Braille font||2.2, 2.5, 3.2 mm|
|Tactile resolution||50 dpi|
|Forming method||13 hammers/anvils|
|Single sheet feeder||Yes|
|Sheet feeder size||50 pages|
|Paper weight||120-180 g/m2 (80-110 lbs)|
|Paper width||5.2-11.7 in|
|Paper length||4.7-23.2 in|
|Height||56 cm (22.05 in)|
|Width||45 cm (17.72 in)|
|Depth||18 cm (7.09 in)|
|Net volume||45.36 dm3 (1.6 ft3)|
|Net weight||12 kg (26.4 lbs)|
|Noise level||80 dB(A)|
|Noise level with acoustic protection||60 dB(A)|
|User interface||Braille and ink labelled panel with multilingual speech feedback|
|Firmware upgrade||Via internet always free of charge|
|Printer drivers||Windows 32/64 bits|
|Voltage||100-240 V AC|
|Power max||140 W|
|Power stand by||5 W|
|Eco power down||0.0.5 W|
